EV Charger is a facility used to charge electric vehicles. The EV charger functions as the main power source to charge electric vehicle batteries so that they can operate optimally and enable environmentally friendly mobility. In Indonesia, EV chargers are becoming an increasingly popular solution due to the push to reduce the negative impact of pollution and achieve clean energy goals.
EVlink charging stations are equipped with advanced features such as real-time charging data monitoring, remote management capabilities, and an easy-to-use interface. Schneider Electric’s Ev Charge also puts safety first, with a range of safeguards in place to protect against electrical risks and ensure compliance with international standards. Organizations looking to support sustainable transportation initiatives will find these charging stations to be an excellent investment to facilitate the adoption of electric vehicles.
As technology advances, Schneider Electric remains committed to innovating and expanding its product offerings to support the growing electric vehicle market. This effort is part of the company's broader commitment to the desire and reducing carbon footprint across the industry.

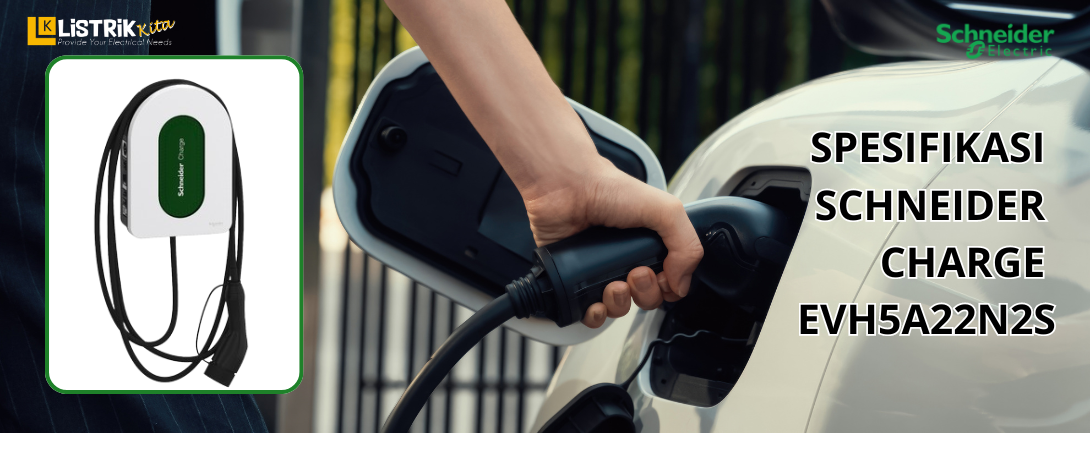

Schneider Electric introduces the Schneider Charge EVH5A22N2S. This is an advanced EV charger designed for home use. The Schneider Charge EVH5A22N2S ensures efficient and reliable charging of electric vehicles without disrupting home appliances. Compatible with a wide range of EV plug types, the Schneider Charge EVH5A22N2S can be customized to suit a variety of models and comes with a dedicated app for easy energy management and home automation. The easy-to-use Schneider Charge EVH5A22N2S marks a leap forward in home EV charging, combining convenience and energy efficiency.
This Schneider Charge product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK1. The operating temperature is between -3°C and 45°C. The output type is a T2S socket-outlet, fixed on the front face of the station. The nominal output power can be adjusted to 7.4 KW, 11 KW, or 22 KW. It is supplied in single-phase (1P+N) or three phases (3P+N). The rated charging currents are 16A/32A under 23VAC/4VAC at 5Hz/6Hz. It can be used with a TN-S, TT or IT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage or on a wall externally. The dimensions are (W) 244mm x (H) 352mm x (D) 117mm. Its product weight is 3.2kg. Its color is white (RAL 93) and green. It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house and adapt the load according to Off Peak/Peak hours sent by TIC. The charging station is connected with Wiser by the Schneider ElectricTM mobile application for residential energy management. It easily starts, monitors, and controls the charging experience remotely. The OCPP 1.6 communication protocol can be used to connect to the supervision device/third party cloud. It can also be connected to Internet home router, either through Wi-Fi or RJ45 Ethernet cable.
The benefits of using the Schneider Charge EVH5A22N2S include :
- Easy to use : Charge your car without disrupting your lifestyle, keeping your installation running as needed.
- Fast : Speed up your charging duration.
- Sustainable : Charge your car by prioritizing renewable energy thanks to the Wiser scheduling function.
- Cost-effective : Wiser allows you to choose the right time to avoid peak charging rates and use renewable energy.
- Peace of mind : customer service centers worldwide.
To find out more about the specifications of the Schneider Charge EVH5A22N2S, click here!
